Internal Diameter (ID)
0.072in / 1.83mm
Lynx™ Aspiration CATHETER System
No compromise, no confusion, just the epitome of precision in simplicity. Lynx is fearless.
Effortless Navigation
Expert Instinct for
Seamless Tracking.
Access the clot face with confidence, without compromising control.

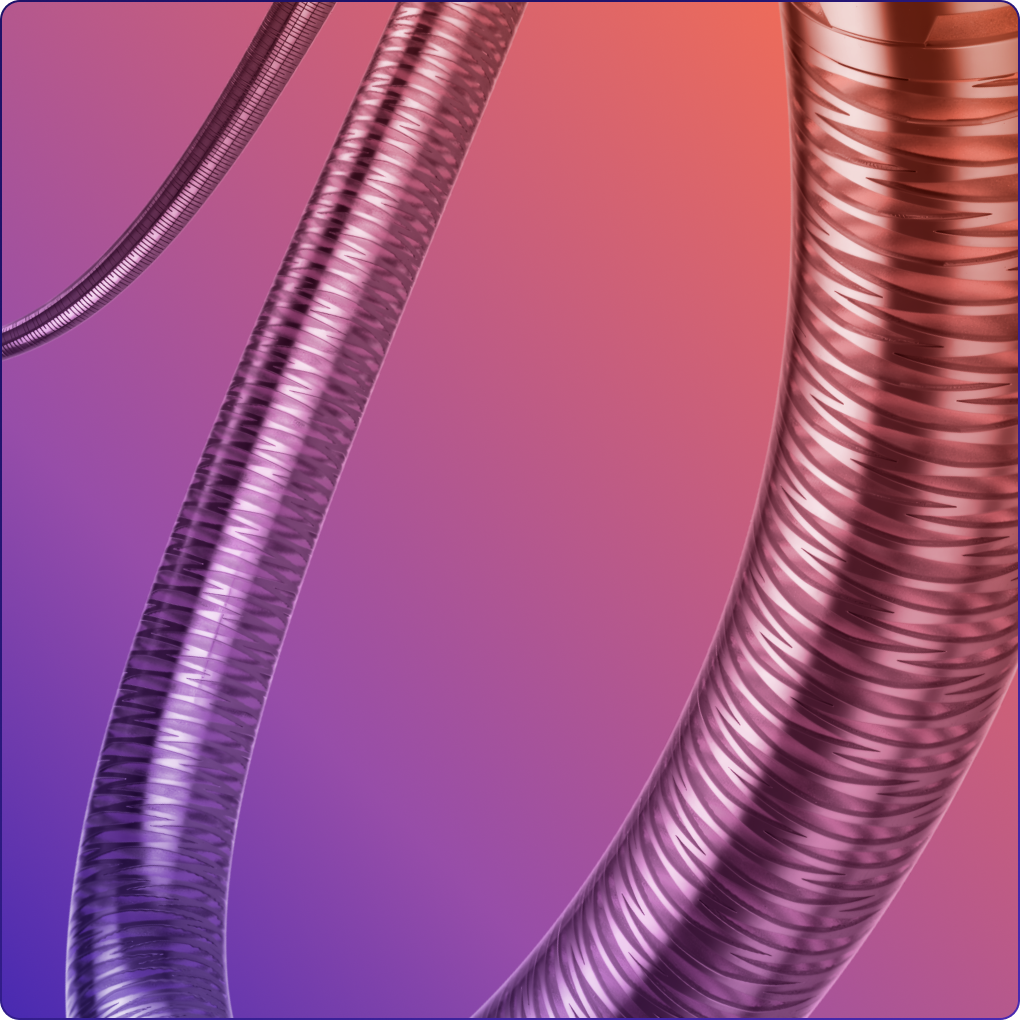

- Distal flexibility with Nitinol QLCT™ segment (up to 20cm)

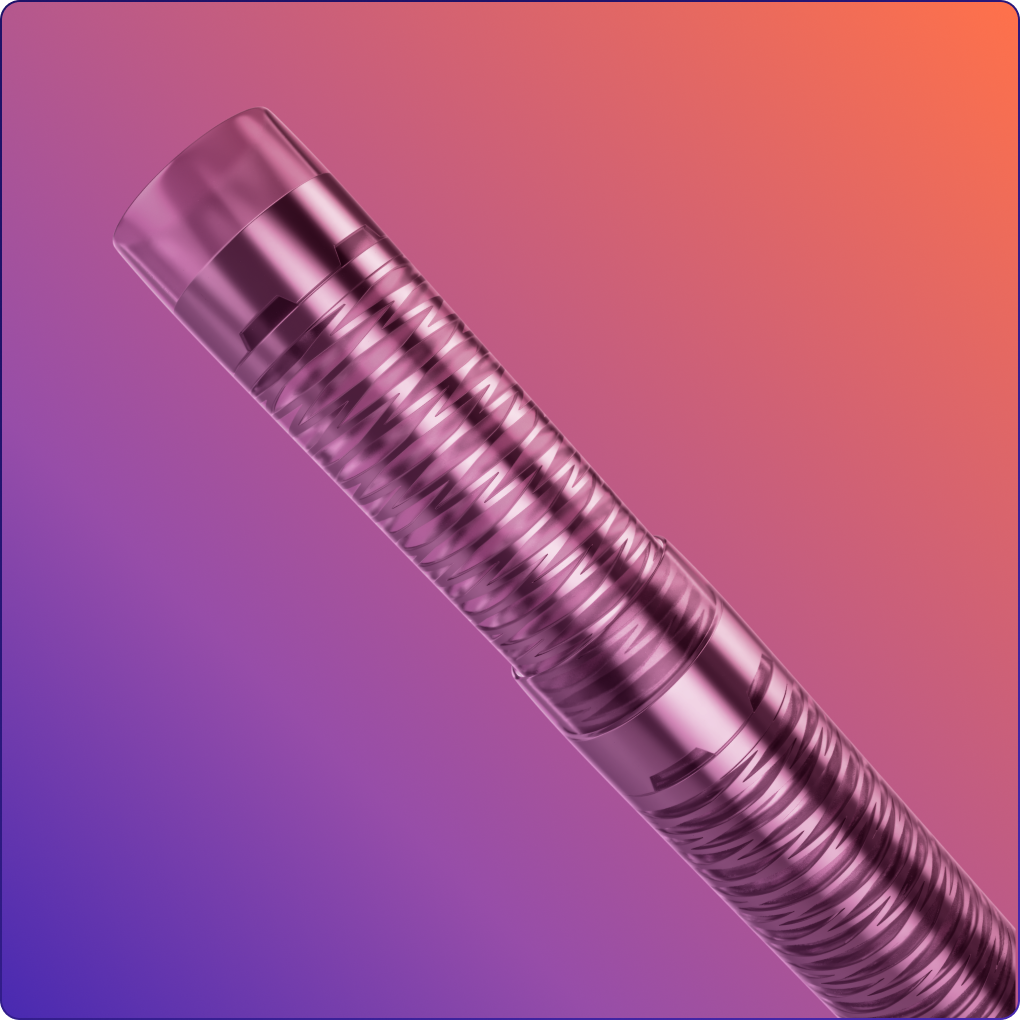

- Tip visibility with castellated marker band
- Coaxial tracking for reduced ledge effect
Seamless Capabilities
Versatile by Design,
Compatible by Nature.
Continuous compatibility from access to aspiration with a unified platform that integrates effortlessly into your workflow.
- Three sizes for optimal vessel-to-catheter ratios1,2
- Coaxial compatibility across all sizes*
- Fully lined with PTFE
CONFIDENCE BUILT-IN
Powerful Where it Matters.
Simple Where it Counts.
Engineered to handle complexity so you don't have to, as you address flow issues quickly.
- Durability with a robust, atraumatic tip
- Proximal support with stainless steel QLCT™

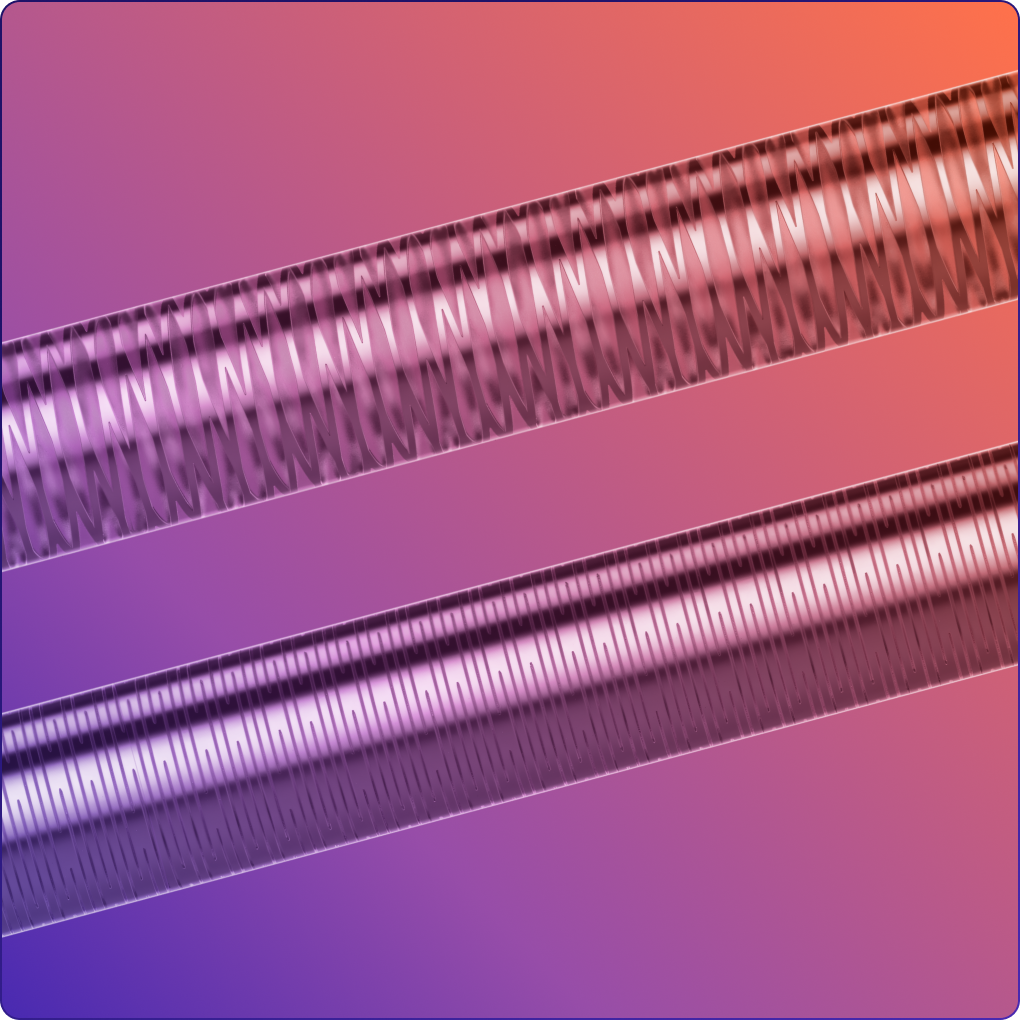

- Kink resistance and structural resilience with a unique open-spaced nitinol structure
*Aspiration is solely applied through the inner catheter when using coaxially
1Charbonnier G, et al.Optimal aspiration catheter size during mechanical thrombectomy for stroke. J Neuroradiol. 2024;51(1):47–51.
2Saver JL, et al.Thrombectomy for distal, medium vessel occlusions: Consensus statement. Stroke. 2020;51(9):2872–2884.
Product Specifications
Lynx Specifications
Lynx 072
Outer Diameter (OD)
0.084in / 2.13mm
Distal Hydrophilic Coating Length
30cm
Usable Length
132cm
Lynx 058
Internal Diameter (ID)
0.058in / 1.47mm
Outer Diameter (OD)
0.070in / 1.78mm
Distal Hydrophilic Coating Length
30cm
Usable Length
138, 149cm
Lynx 044
Internal Diameter (ID)
0.044in / 1.12mm
Outer Diameter (OD)
0.056in / 1.42mm
Distal Hydrophilic Coating Length
50cm
Usable Length
145, 160cm
COMPONENTS
- Rotating Hemostasis Valve (RHV)
- Aspiration Tubing†
- Flow Switch†
- Aspiration Tubing Extension†
- Scale Card
†Supplied pre-assembled.
In the Wild
Lynx Clinical Case Examples
Important disclaimer: The results depicted are from actual patients and are intended to be representative examples only. Individual outcomes may vary based on factors such as age, lifestyle and treatment variations. No guarantee or warranty, express or implied, is made that every individual will achieve similar results.
Ordering Information
Product
Usable Length
Product Code
Lynx 072
132cm
AC6072-132-S
Lynx 058
138cm
AC5058-138-S
149cm
AC5058-149-S
Lynx 044
145cm
AC4044-145-S
160cm
AC4044-160-S
Lynx 072
Usable Length
132cm
Product Code
AC6072-132-S
Lynx 058
Usable Length
138cm
149cm
Product Code
AC5058-138-S
AC5058-149-S
Lynx 044
Usable Length
145cm
160cm
Product Code
AC4044-145-S
AC4044-160-S
